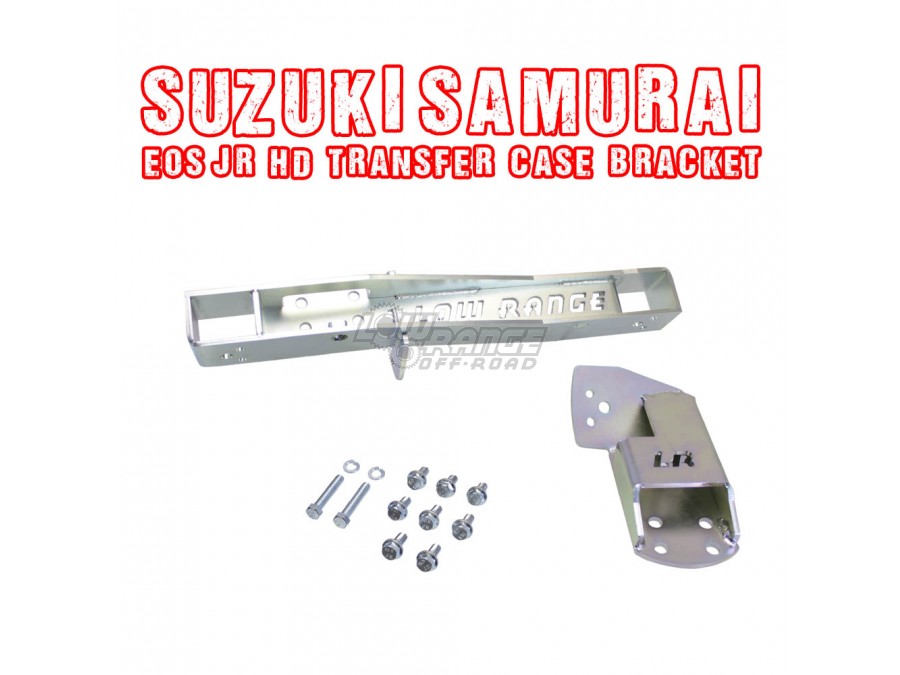

Samurai EOS JR. Transfer Case Bracket Kit 86-95 Suzuki Samurai Low Range Off Road

Low Range Off-Road is pushing the Suzuki Samurai world's evolution with new and innovative products that perform great and don't break the bank. While other manufactures are leaving the Samurai behind we step in to fill their place. Our EOS cradle is intended for heavy duty use and is more than needed on a stock Samurai. One of our competitors once made a popular transfer case bracket kit that worked well on stock or mildly built Samurais. However that mount was discontinued in 2013. Since there was no intermediate transfer case bracket kit, we decided to make something that would fill the void left behind nicely.

The factory transfer case mount arm is very thin. We have seen this arm fail with stock t-case gearing and 30-inch tires. If you install 4.16:1 t-case gears or install oversized tires you need to strengthen this mount or it might bend and break the top of your transfer case housing.

With 4.9:1-6.5:1 gear sets we recommend using our Original EOS Cradle.

Stock to 4.16:1 gears put less stress on the mount arm. We decided to make a step below our EOS kits and make the EOS Jr. This is by no means a weak link being fully MIG welded and zinc plated from 3/16 inch and 1/4 inch thick laser cut steel plate.
Fits:

• 1986-1995 Suzuki Samurai (Stock to 4.16:1 Gears)
• Suzuki Sierra and other international models similar to the SJ413
