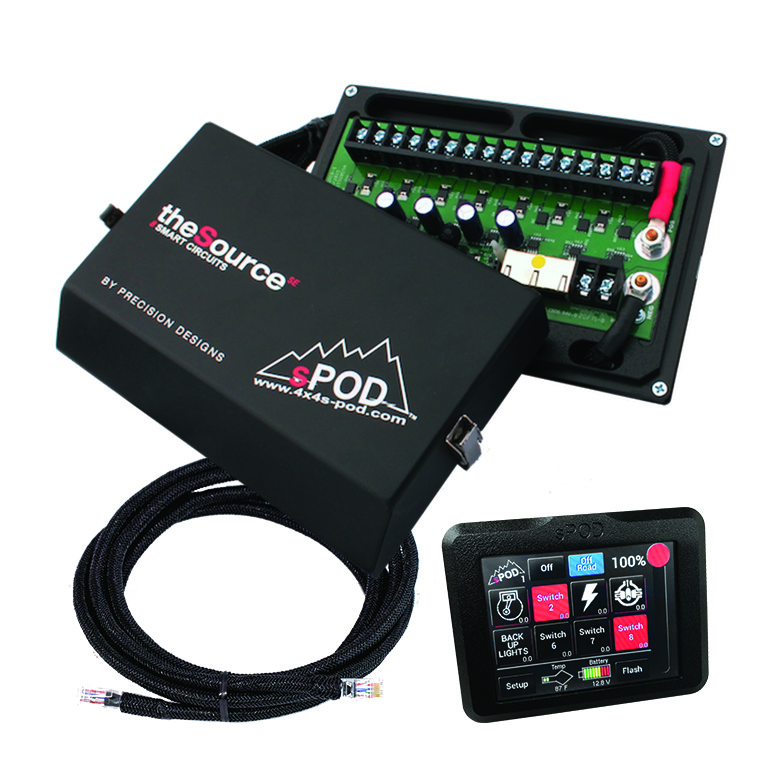

sPOD systems utilize automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies.

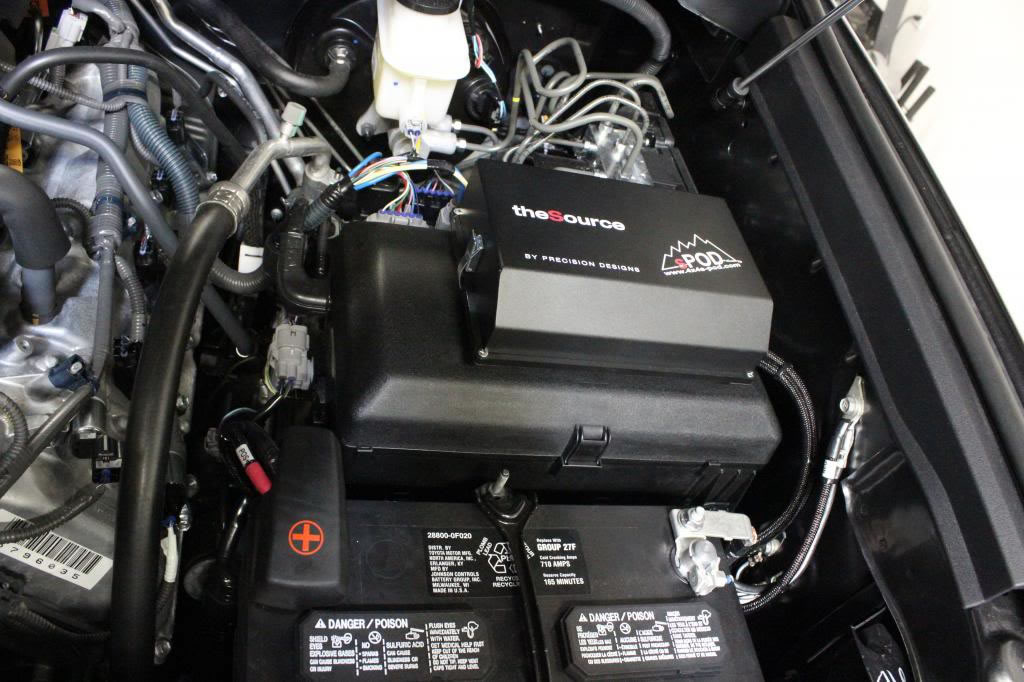

OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States since 2006.
The touchscreen controller is small but packs a BIG punch! (3-3/4w X 2-7/8h X 5/8 thick) The control module is a 3.5-inch LED-backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors and a viewing angle of 180 degrees housed in a billet aluminum case.

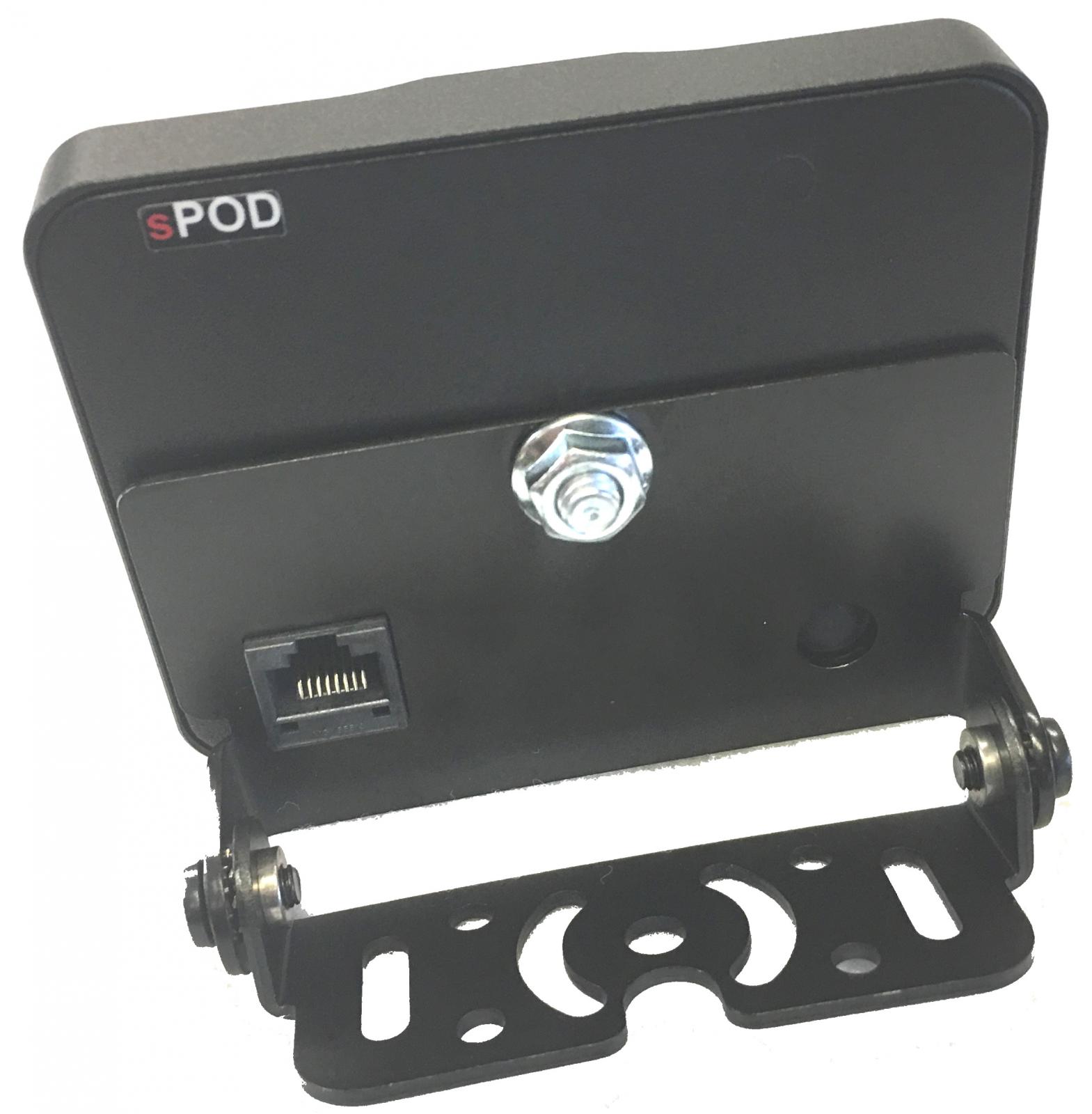

Touchscreen comes with its own universal mounting bracket. The connection between the SourceSE and the touchscreen uses a standard Ethernet cable 10 feet long.
Notes:
- The Touchscreen will go into Deep Sleep after 6 hours of inactivity (ie: no usage of the HD or not running the engine). Once in deep sleep, the HD will turn off any accessories that were left on (including refrigerators!).
- This system will not fit 2007-2018 Jeep Wranglers, please refer to Part Number 8-700-TSB-JK
- For 2004 and older Toyota Tacoma, please request the special 90 degree (2 tabs formed up) Source bracket. The industry leader in power and control solutions.
- The touchscreen is NOT weather resistant and should NOT be exposed to the elements. Water or any liquids will damage the touchscreen and void the warranty.
Benefits:
- Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.
- Reduced wire harness complexity, using one harness to our controller to accommodate up to 32 circuits.
- Reduced harness size offers an overall reduction in weight, improving the operational efficiency of the equipment.
- Increase in switch lifecycle over traditional electromechanical switches.
Each switch is programmable for:
- Dimming
- Strobe
- Flash
- Momentary
- Switch Linking
- On Road and Off Road mode of operation
Touchscreen Control Module Features:
- Voltage feedback (vehicles battery/alternator voltage)
- Short-range Bluetooth enabled
- SourceSE board temperature feedback (shown on screen)
- Customization: legends (3 lines of text)
- Automatic backlighting off after 30 minutes of being inactivity
- Automatic power off after 6 hours of being inactive or engine not running (Deep sleep mode)
- One touch off function
- One second hold on off button shuts all circuits down
- Automatic system shut down when the touchscreen is unplugged
- Backlight dimming
- Multiple Source select (One touchscreen can control up to 32 circuits)
- Comes with a complete mounting hardware kit (articulating bracket)
Options:
- RAM-201U Double Socket Arm for 1 inch RAM Ball (Must have this in order to mount touchscreen)
- RAM-238U Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
- RAM-224-1U Suction Cup Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
- 8-700-BT Add-on Bluetooth module to enable the system to be controlled by a smartphone or tablet (Optional)
NOTE: Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor that is required in order for the lights to function properly.
- Bluetooth 4.0 compatible
- Compatible with:
- Android devices
- iPhone 4s or newer
- iPad 2 or newer
- iPad mini iOS 7 or newer
- Works in conjunction with existing SE sPOD system
- Access to iTunes App Store or Google Play Store to download free sPOD Bantam app
The primary reason for the Bluetooth integrated into the Touchscreen is for programming purposes, and not for remote control due to the limited range.
Touchscreen housings are precision machined billet aluminum which contributes to the distance limitations.
Ranges may vary from 5 feet up to 15 feet depending on the location of the Touchscreen, the surroundings, phone type, phone cover, and many other variables.
