Samurai Rock Assault Axle Housing Kit E Locker For 86-95 Samurai Trail Gear

Rock Assault Samurai Rear Axle Housing Kit. Trail-Gear is proud to introduce The Strongest Samurai Axle Housing Ever Made. The Samurai Rock Assault Axle Housing Kit is a Toyota IFS width axle housing that is offset for a Samurai t-case. This housing features a heavy-duty, press formed, 0.25 Inch plate steel center section shell that is specially shaped to ensure a minimum of 0.75 Inch additional clearance under the differential. The differential mounting surface is made from 0.5 Inch plate steel and comes with our Differential Stud Eliminator Kit to ensure that your differential never pulls out of the housing.

The outer offset flanges are made from 4130 chromoly to prevent distortion or bending. Axle tubes are made from 0.25 Inch thick DOM tubing, with a 3.0 Inch outer diameter. This exclusive design features axle tubes that have been offset above the housing centerline. The inner axles ride near the bottom of the axle tubes rather than in the center. The results are an increase of 0.375 Inch ground clearance under the axle tubing. The center section is offset to line up with the Samurai t-case so that your driveline does not vibrate from being offset.
Details:

• This housing uses a Toyota 8.0 Inch differential
• Overall housing length is 51.5 Inches from mounting flange to mounting flange
• Shipped unpainted and lightly oiled to prevent rusting
• We recommend degreasing housing inside and out before installation and painting
• Uses stock or aftermarket 1986-1995 Toyota Pickup and 4Runner brake backing plates and brake assemblies
• Uses a custom length chromoly axle shaft
• An optional fill inspection cap can be installed for an additional fee

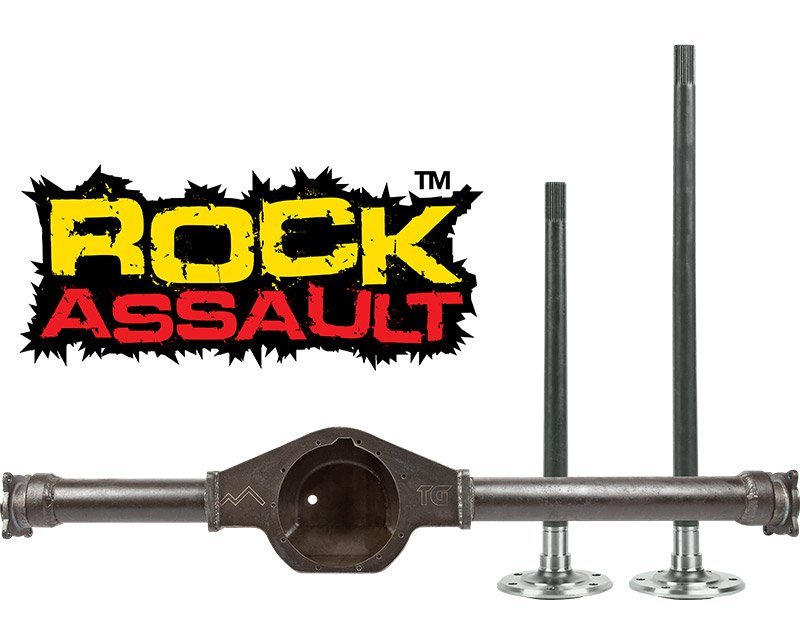

Kit Includes:

• Samurai Rock Assault Rear Axle Housing
• Chromoly Samurai axles
• Differential stud eliminator kit
• Differential drain plug
• Ultra grey silicone

Important Notes:

• We recommend the addition of our Axle Housing Inspection Hole Kit to allow for easy fluid level and ring gear visibility
• Available in a DIY installation version requiring drilling through the differential housing and welding on a threaded bung
• Also available as well as a factory-installed version
• You will need to grind the bottom of the differential housing flange flush with the axle housing

Specs:

• Warranty: 12 Month Limited Warranty
• Sold As: Kit
• Material: Steel
• Finish: Bare
• Color: Grey
• Option: E-Locker
• Fits: 1986-1995 Suzuki Samurai
