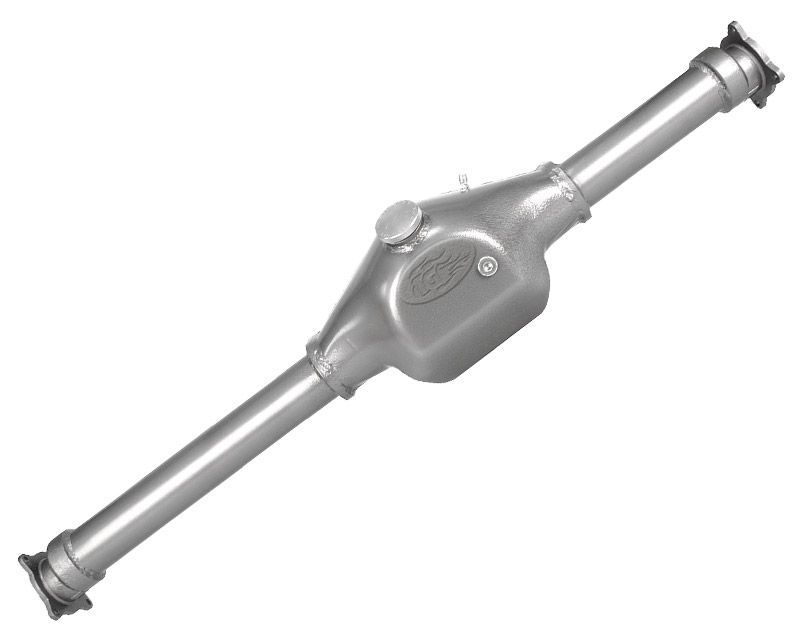

Rock Assault Samurai Rear Axle Housing. Trail-Gear is proud to introduce The Strongest Samurai Axle Housing Ever Made. The Samurai Rock Assault Axle Housing is a Toyota IFS width axle housing that is offset for a Samurai t-case.
This housing features a heavy-duty, press formed, 0.25 Inch plate steel center section shell that is specially shaped to ensure a minimum of 0.75 Inch additional clearance under the differential.
The differential mounting surface is made from 0.5 Inch plate steel and comes with our Differential Stud Eliminator Kit to ensure that your differential never pulls out of the housing. The outer offset flanges are made from 4130 chromoly to prevent distortion or bending. Axle tubes are made from 0.25 Inch thick DOM tubing, with a 3.0 Inch outer diameter.
This exclusive design features axle tubes that have been offset above the housing centerline. The inner axles ride near the bottom of the axle tubes rather than in the center. The results are an increase of 0.375 Inch ground clearance under the axle tubing.
The center section is offset to line up with the Samurai t-case so that your driveline does not vibrate from being offset. The Samurai Rock-Assault axle housings use stock or aftermarket 1986-1995 Toyota Pickup and 4Runner brake backing plates and brake assemblies and uses a custom length chromoly axle shaft that Trail-Gear is also very proud to manufacture.
The Samurai Rock-Assault axle housings also use a Toyota 8.0 Inch differential. An optional fill or inspection cap can be installed for an additional fee. Overall housing length is 51.5 Inches from mounting flange to mounting flange.
Axle is shipped unpainted and lightly oiled to prevent rusting. We recommend degreasing housing inside and out before installation and painting. We recommend the addition of our Axle Housing Inspection Hole Kit to allow for easy fluid level and ring gear visibility.
The kit is available in a Do It Yourself installation version which requires drilling through the differential housing and welding on a threaded bung.The kit is also available as a factory-installed version. In order to achieve full ground clearance, you will need to grind the bottom of the differential housing flange flush with the axle housing!
Specs:
- Samurai Rear Axle Housing For 86-95 Samurai with Inspection Hole
- Warranty: 12 Month Limited Warranty
- Sold As: Kit
- Material: 4130 Chromoly Steel
- Finish: Bare
- Color: Grey
- Year: 1995
- Type: Regular
- Location: Rear
- Outer Diameter: 3.0 Inch
- Size: 51.5 Inch
- Fits: 1986-1995 Suzuki Samurai
