Mini (7 inch) 6 Switch Panel Universal sPOD

Mini (7 inch) 6 Switch Panel Universal sPOD

Universal System for use in many trucks and UTVs.

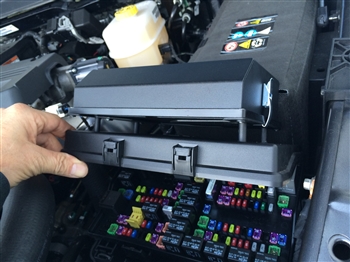

This system includes a 7 inch mini switch panel. The sPOD switch panel is easy to install and arrives with switches installed and wired for plug and play ease. The Source mounts to top of fuse box lid using supplied bracket and hardware. Minimal cutting and drilling required.

Note: Please be aware that this panel may NOT fit some Dodge RAM 1500, 2500 or 3500 from 2009 - 2020!

Each system includes the following:

• All required mounting brackets and hardware.
• Six Contura switches, 2 Red, 2 Amber and 2 Green actuators, two piece Wire Harness set with 8 multi-color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.
• 9 foot control harness (interconnect between the switches and the power distribution module)
• All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
• 12 position terminal block for accessory attachment
• 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
• 6 ATO style automotive fuses Three 15 amp and Three 30 amp fuses supplied
• 6 Diodes to protect sensitive accessories such as LED lights from field collapse
• Inline 50amp auto resetting circuit breaker
• 8 gauge power leads with crimped on terminal for connection to the battery
• Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!
• Option LVCO overide
