Jeep JK 1350 Heavy Duty Rear Driveshaft Automatic Transmission 07-11 Wrangler JK 4 DR Reel Driveline

Heavy DutyThis system is a stronger than O.E. type applications recommended for stock to 4.5 inch lift.

JK 2007-2011 Powertrain is installed at 6 Inch. JK 2012-2018 and JL 2018 Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.

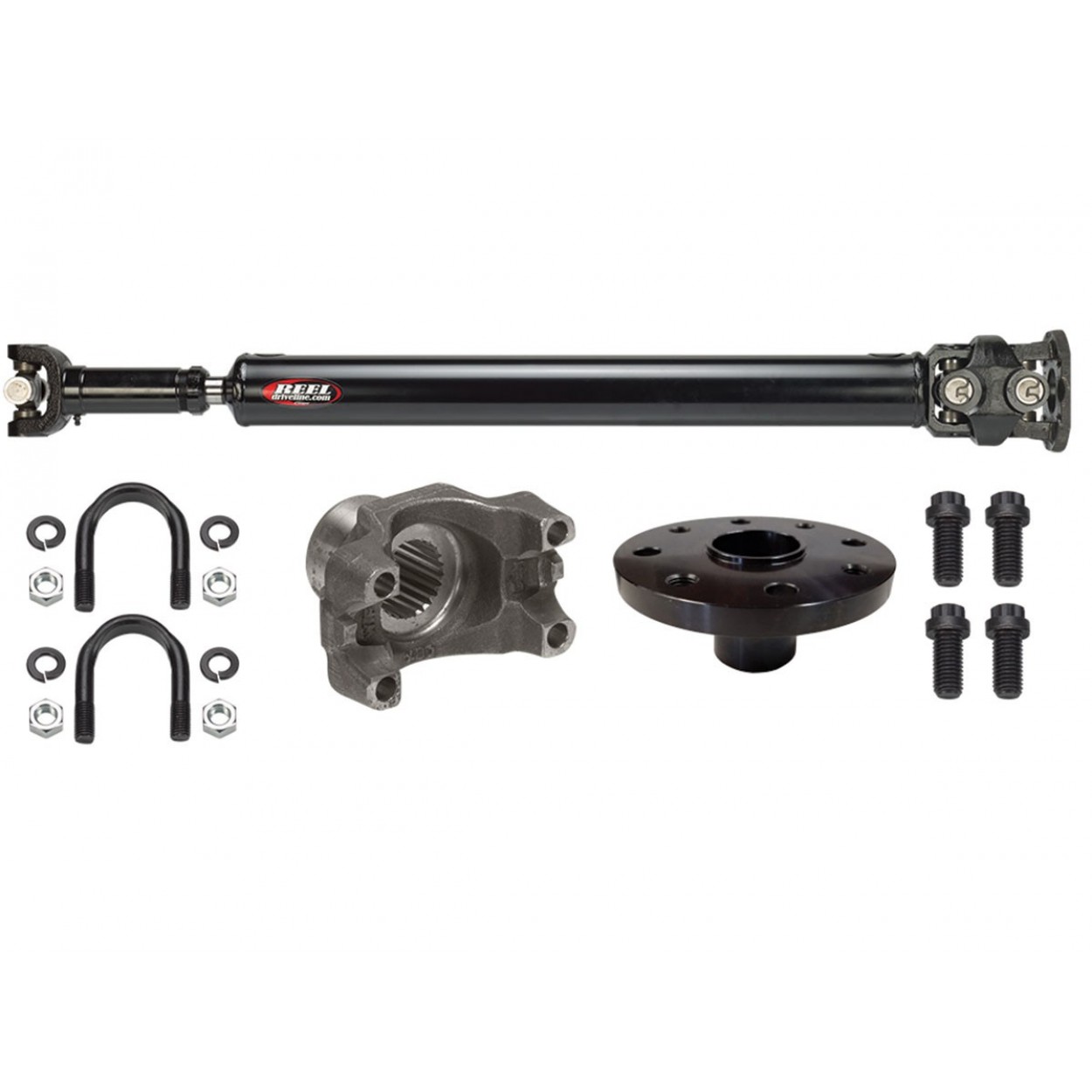

Kit Includes:

• 4 Door Models
• 2.75 inch x.083 Tubing
• 1350 U-Joints
• Cast U-Bolt Style Yoke
• 1350 U-bolts
• Forged T/C Flange
• Grade 8 Hardware
• Installation Instructions
