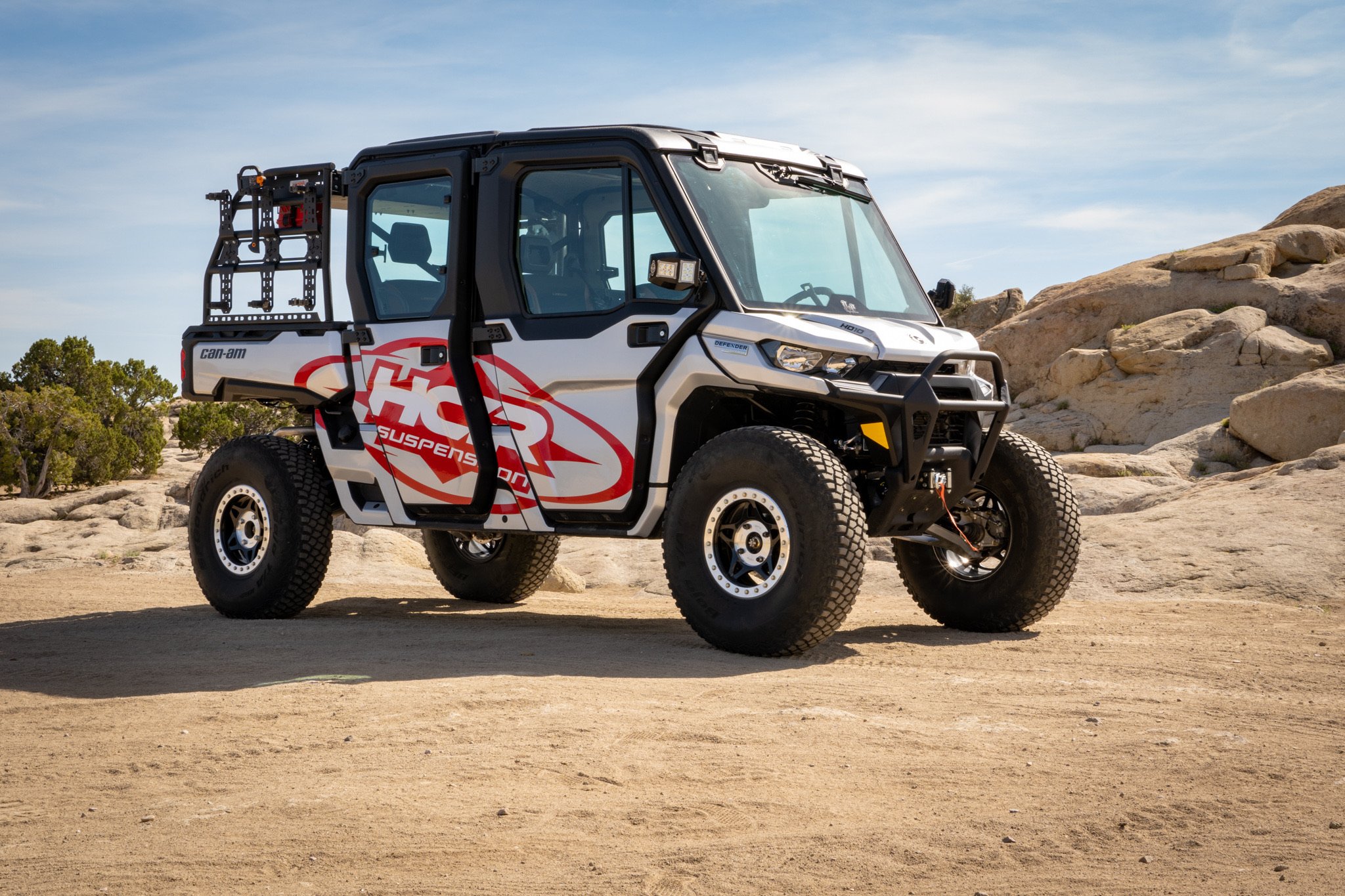

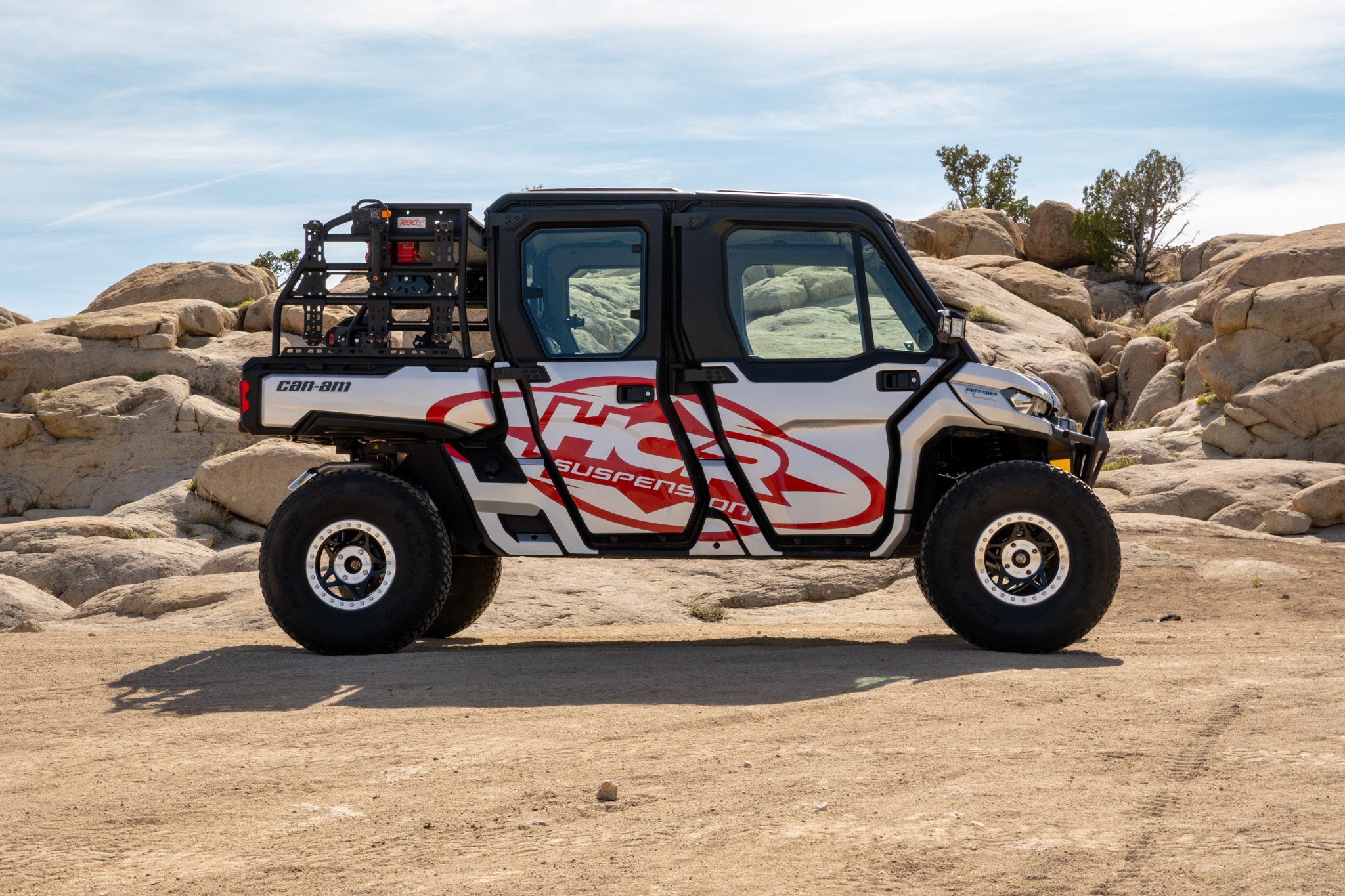

Can-Am Defender Forward A-Arm Suspension Kit HCR Racing

HCR's proprietary billet, slot and tab design and honeycomb boxed arms are built to withstand the beatings of rigorous off-road riding which achieving the optimal combination of strength and appeal.

Every external weld is an internal plate structured into the design. While the cost-effective approach is to run tube ends for ball joints, all HCR kits run a 4130 heat treated billet end allowing all internal and external plating to be attached to this billet eliminating a potential weak point.

Billets are available in both balljoint and spherical applications. The custom alloy used to manufacture every HCR kit is 30 Percent stronger in tensile and yield strength compared to 4130 Series chromoly.

This HCR custom material endures several processes and is hardened for better wear resistance and overall strength.

Features:

• Can-Am Defender Forward A-Arm Suspension kit will add lift without adding shock brackets.
• Pushes front arms forward 2.5 inch allowing for more clearance in order to run larger tires.
• Depending on tire manufacturer will fit up to 33 inch tire
• Laser Cut Construction for prescise fit and finish
• CNC'd Chromoly mounting points for increased integrity

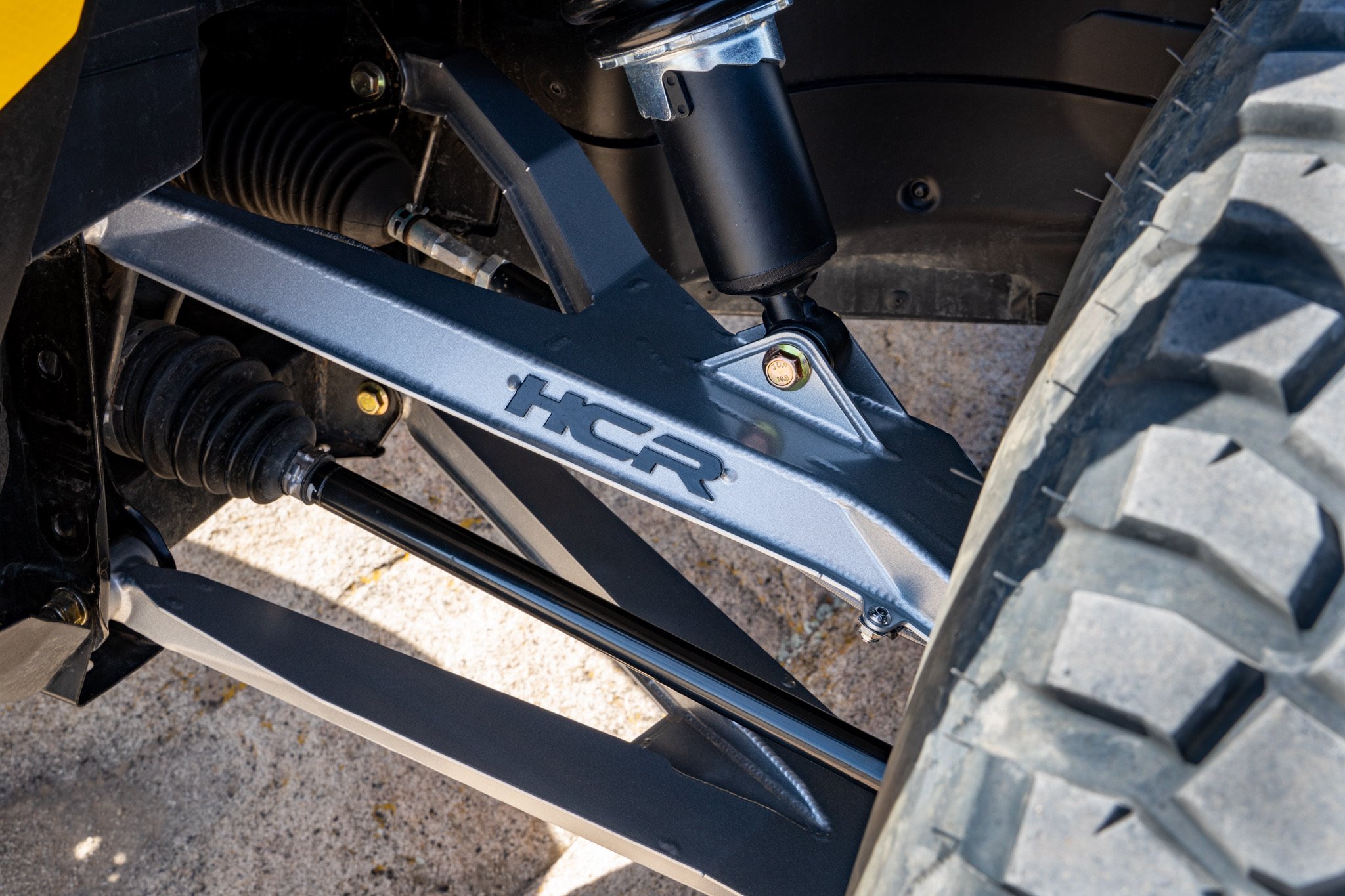

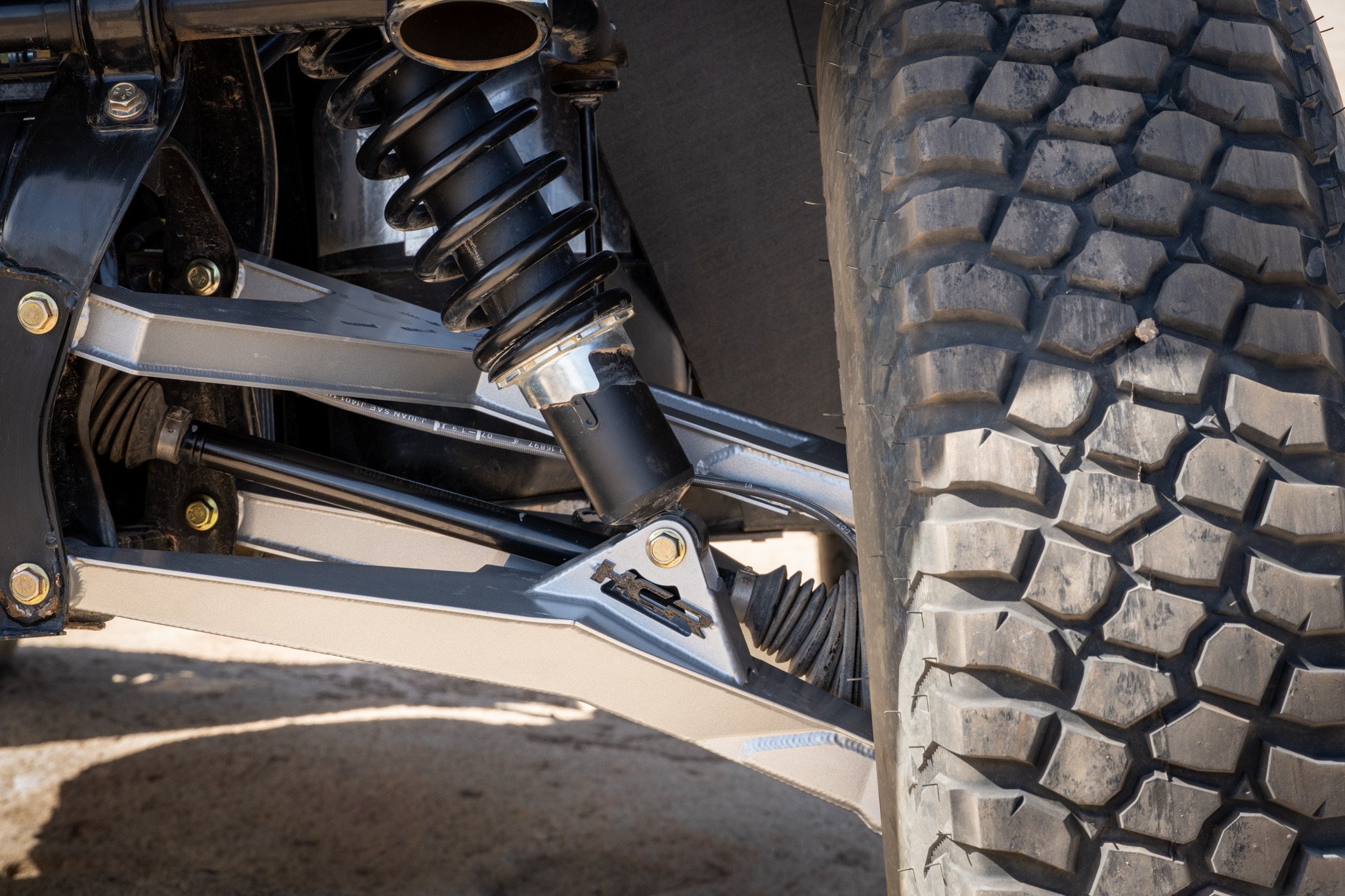

• High Clearance Boxed Front A-Arm Design 0.500 inch added ground clearance
• Each piece is Tig Welded by hand for strength and aesthetics
• Reuse of OEM ball joints to maximize low speed steering ease and smooth travel with less maintenance
• 100 Percent Proudly Made in the U.S.A
• 100 Percent Bolt-on installation using factory mounting points

Kit Includes:

• 4 Front A-Arms
• Hardware
