There is nothing more valuable in your Samurai than its occupants. Low Range Off-Road's Suzuki Samurai Sport Cage was designed with our own families' safety in mind. Many rear cages have drawbacks that kept us from installing them.
Usually they require drilling into the floor of the body, often resulting in squeaks, rattles, and exhaust fumes entering your cab. Low Range Off-Road has fixed this by making the rear cage bolt into the floor of the tub. Utilizing a large floor plate, it spreads the load across a large area, forming a strong attachment point.

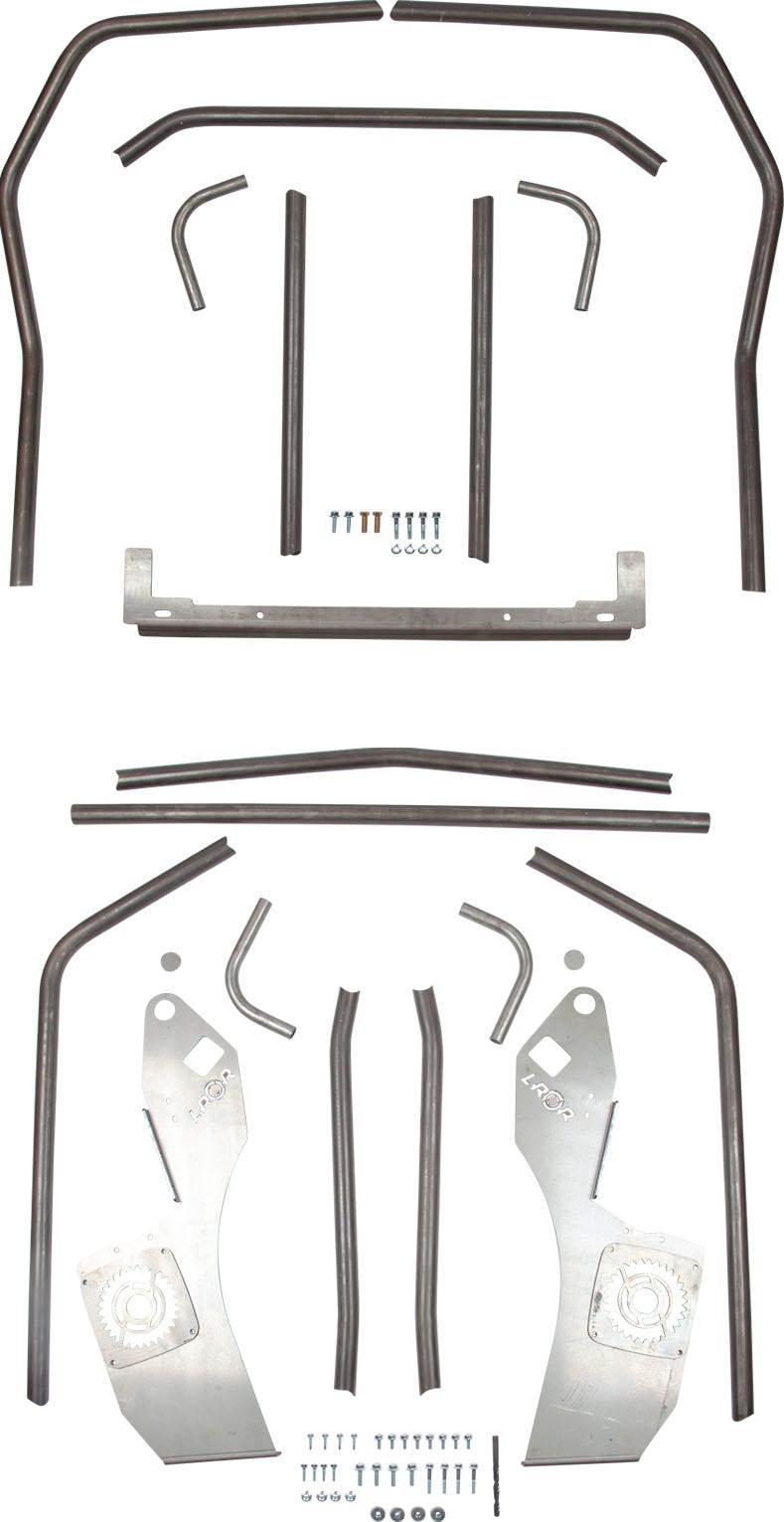

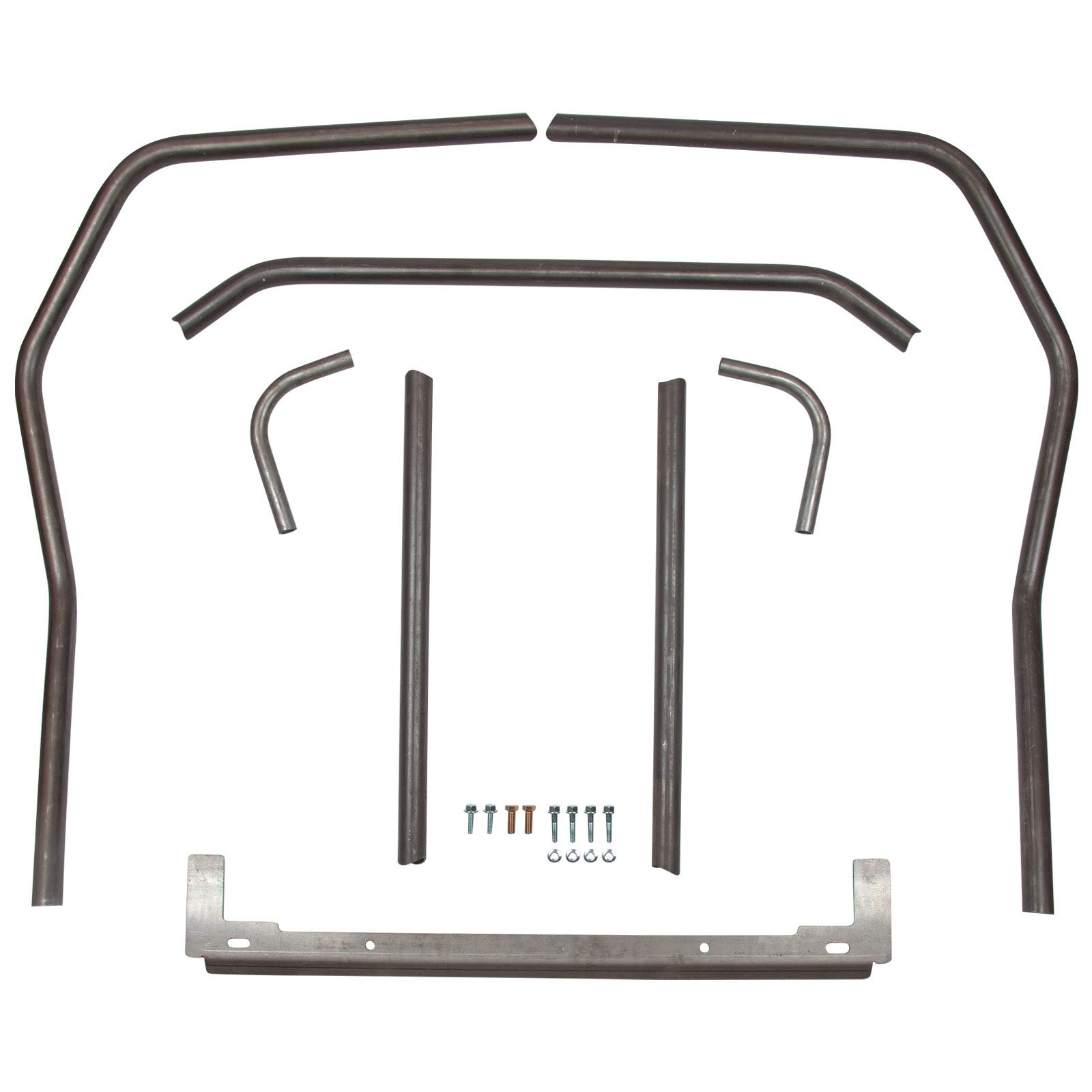

Cages are shipped in prebent and coped tube segments ready to be welded together. Installing a tube cage usually precludes the use of Samurai doors. We solved this by using laser-cut steel plates on the front lower portion of our cage.
With our unique design elements, the front doors shut correctly and do not ruin your nice paint job or your door panels. This also makes it easier to run your door straps. Integrated into the design is a speaker grille that can easily be removed for speaker installation. Since this is also made from the same 3/16 inch thick ASTM A36 Steel as the mounting brackets, it protects your speakers from damage.
We manufacture these in-house here in California, USA from .120 wall DOM Steel Tubing. Roll cages should be made out of nothing less. When properly welded this cage is very difficult to crush and will serve most off-roader's needs.
Hopefully you never need it, but if you do end up on your lid (as we have countless times) be assured that you;ll come away with only minor scratches to the cage paint.
Complete Front and Rear Set -SRC-SC. Both front and rear halves of our cage tie into the factory soft top rollbar. Installation on a factory tin top is possible but requires th addition of a soft top rollbar.
Note:
- Fits convertible Samurais with fiberglass or soft-tops.
- Does not fit tin-top Samurais.
- Some minor grinding and Trimming may be required.
Features:
- 86-95 Suzuki Samurai Sport Cage Full Assembly
- Complete .120 wall DOM Steel Construction (Small Grab Handles are HREW)
- Pre-Coped and Bent Tubing for Easy Welding
- 3/16 inch Thick ASTM A36 Steel
- Precision Laser Cut and CNC Press Bent Front Cage Attachments to Floor and Dash Bar
- Laser Cut Speaker Grilles
- Includes Weld-On Grab Handles
- Complete Metric Hardware for Installation Included
- Ships Unpainted
- Meets Most Roll Cage Regulations
