Improve the ride and style of your 2006-2007 Dodge RAM 1500 Mega Cab 4WD truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch Tires.
BDS engineered new lower control arms are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.
Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 4 inch
- This truck is available with two different axle sizes, 3.5 inch or 4 inch. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4066.
- Rear lift options will not fit dually applications.
- Although unusual, if driveline vibration occurs, order transfer case drop kit available in options or t-case index kit.
- Power Wagon applications require sway bar link kit #122401. The Power Wagon has a 2 inch taller ride height, so net lift gain will be 4 inch.
- Tubular short arms improve strength, handling and caster control
- Heavy duty control arm brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
Rear Lift Option Block Kit
- Includes a rear block and u-bolt kit to achieve a 4 inch rear lift.
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.
Axle Diameter 3.5 Inch Axle
The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

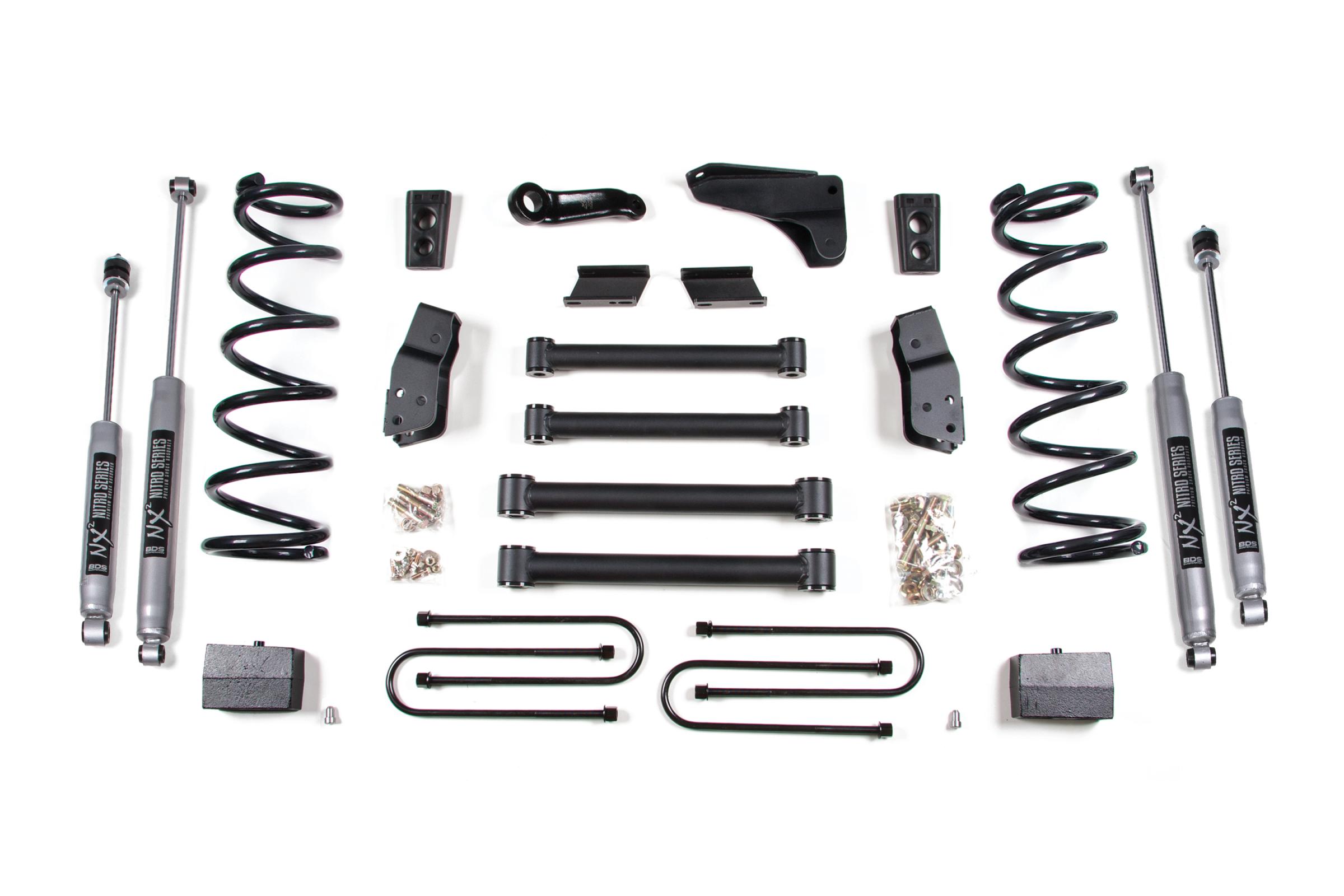

Kit Components:
- Includes two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring, UPC Code 658848611294
- Includes one BDS012611, 03-07 Dodge 3/4-1 ton Box Kit, UPC Code 658848612734
- Includes one BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit, UPC Code 658848616411
- Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
- Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
- Includes four UBT4064, 9/16 x 3-1/2 x 12-1/2 Round U-bolt, UPC Code 711745613027
