Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 3 inch
- Fits OE equipped air ride systems only
- Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
- Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
- Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
- Heavy duty 4-link improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Tire Size: 37 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.625
8 Bolt Indexing Ring
- Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
- The 8-bolt kit also
- Includes an internal shaft seal extension and new shaft seal.

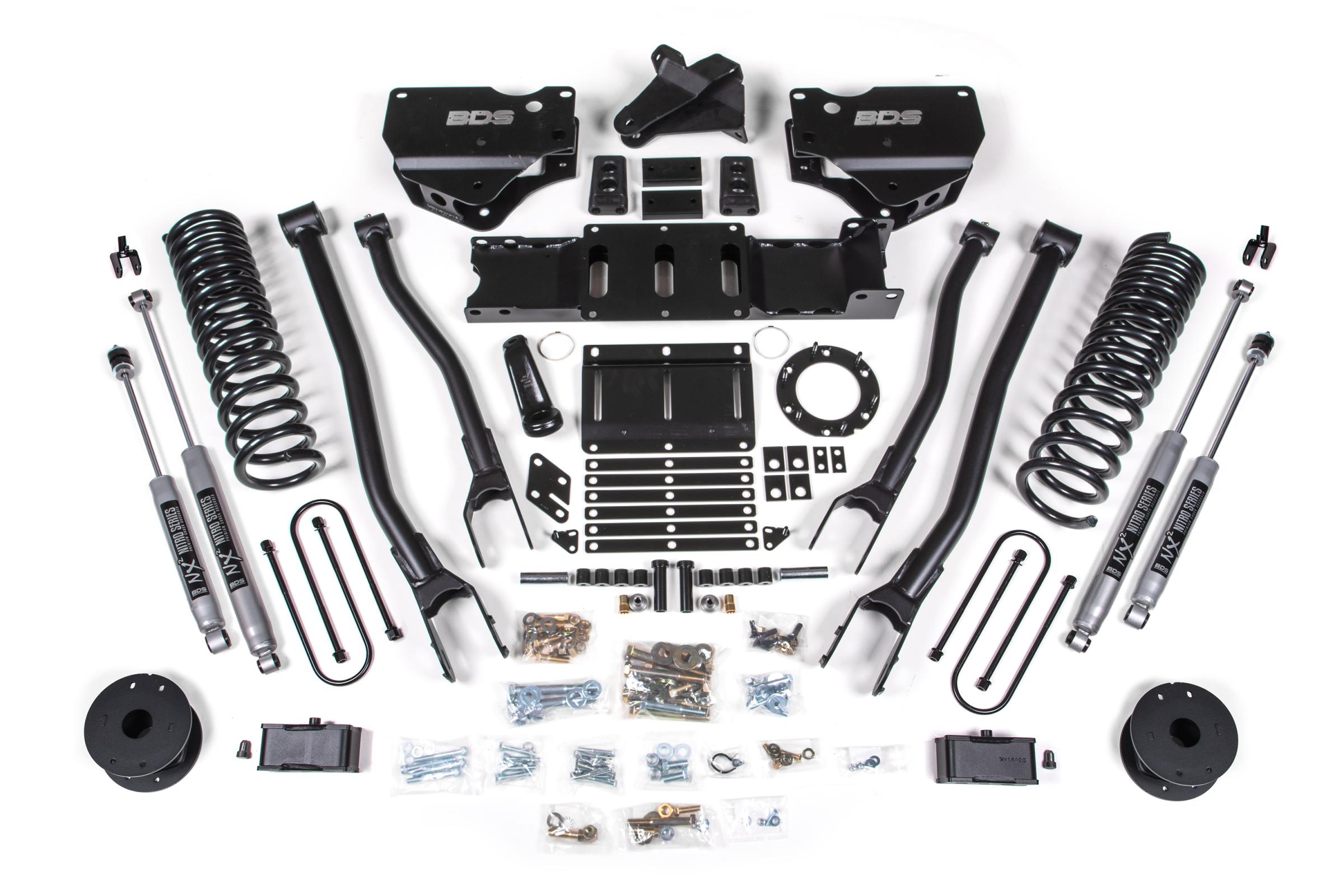

Kit Components:
- Includes one BDS012319, 2019-2024 Ram 3500 Auto Level Air Suspension 3 inch Rear w/o overload, UPC Code 711745611474
- Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
- Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
- Includes two BDS032403, 2019-2024 Ram 2500/3500 Coil 4 inch Diesel - 5.5 inch Gas, UPC Code 711745612792
- Includes one BDS122421, 2019-2024 Ram 3500 T-Case Index 18deg - 8 Bolt, UPC Code 658848619542
- Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
- Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062
