Improve the ride and style of your 2019-2024 RAM 1500 Rebel truck with a 4-inch suspension lift kit by BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility.
These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links.
Also, new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height.
The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 5 inch
- Fits 4WD models only
- RAMs with factory 22 inch wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
- Will NOT fit adjustable inchair ride inch suspension equipped models.
- Stock 18 inch wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory Tire size
- Will NOT work on diesel models
- Will NOT fit 2019-2022 RAM 1500/Rebel Classic models, Refer to the 2018 kit listings.
- Vehicles equipped with the Off-Road Group Package require the Ram 1500 Rebel 4 Inch kit to achieve correct ride height. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the 'Optional Equipment' section there will be a line item that reads 'Off-Road Group' if your truck is equipped.
- Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
- If using 18 IN Wheels with maxinum recommended backspacing test fit wheels on vehicle before mounting Tires To Ensure clearance
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

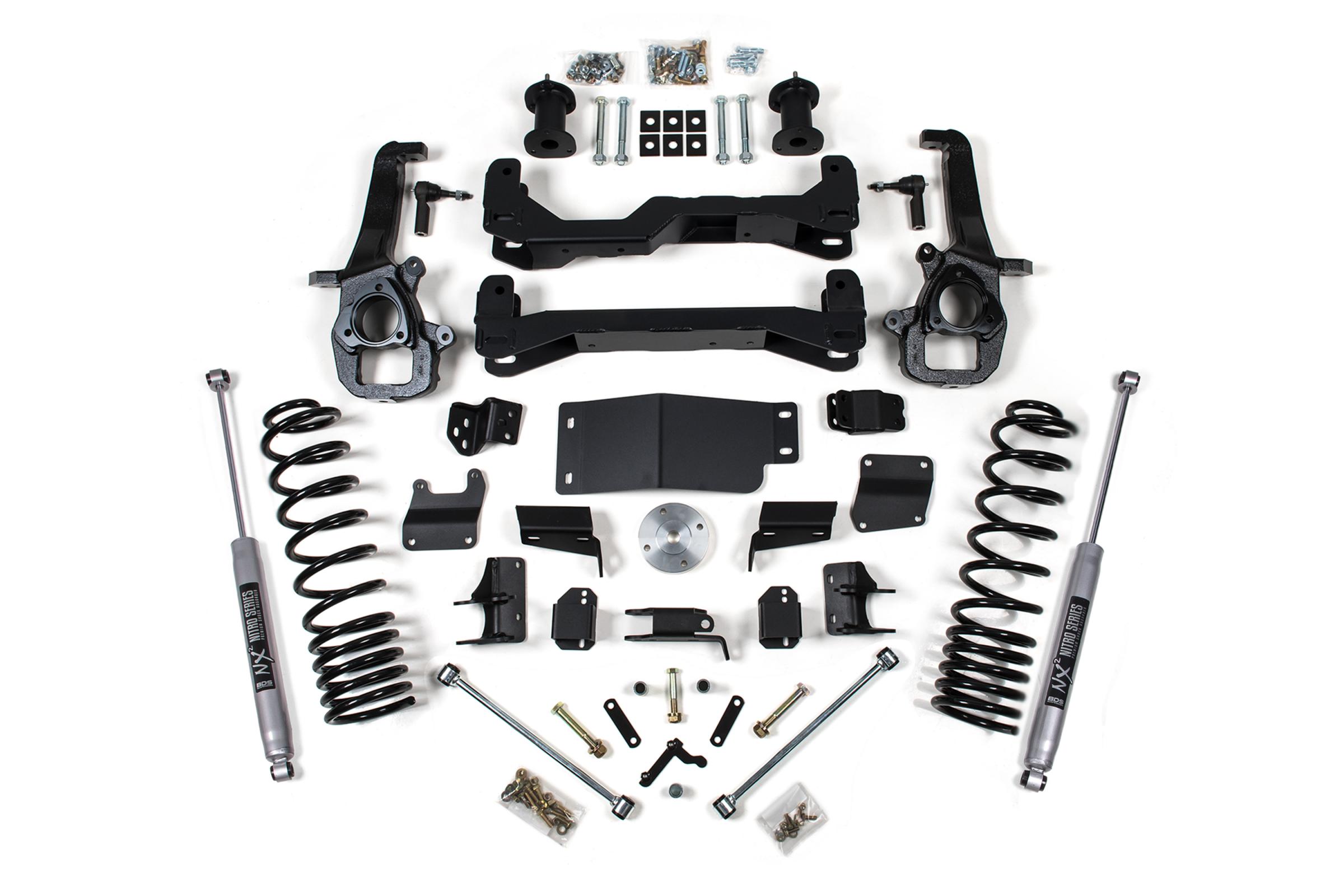

Kit Components:
- Includes one BDS022404, 2019-2023 Ram 1500 4 Inch Strut Spacer Box Kit, UPC Code 658848615391
- Includes one BDS022508, 2019-2023 Ram 1500 Rear Box Kit, UPC Code 658848615407
- Includes one BDS022632, 2019-2023 Ram 1500 Knuckle Box Kit - DRV, UPC Code 658848615520
- Includes one BDS022633, 2019-2023 Ram 1500 Knuckle Box Kit - PASS, UPC Code 658848615537
- Includes one BDS022642, 2019-2023 Ram Front Box Kit 1 of 2, UPC Code 658848615575
- Includes one BDS022643, 2019-2023 Ram Front Box Kit 2 of 2, UPC Code 658848615582
- Includes one BDS032508, 2019-2023 Ram 1500 5in Rear Coil Box Kit, UPC Code 658848616404
- Includes two FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
