Designed to improve stance, performance, and capability, the BDS 4-inch lift kit for the 2000-2006 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 4WD is a must have upgrade.
For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
The rear lift is accomplished with new coil springs, track bar relocation, sway bar links and extended bump stops. Also for the rear choose between brackets for Auto Ride equipped vehicles or precision tuned NX2 Nitro and premium FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Spacer
- Shocks Included: No
- Front Lift Height: 4.5 inch
- Rear Lift Height: 3.5 inch
- Special tool (Kent Moore Tools Part# J-42393) required to unload/load torsion bars. Not available through BDS.
- Requires frame bracket modification and differential mount modification.
- All-wheel drive models will require front drive line modification.
- If equipped with stock 17 inch wheels, then must replace with 17 inch or larger aftermarket wheels.
- Larger Tires cannot be installed on OEM wheels.
- Auto-Ride equipped vehicles to require part #121400 in place of front and rear shocks.
- System will not fit 2000 model Escalades.
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
- Choice of NX2 or FOX 2.0 gas shocks for improved performance
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Tire Size: 33 x 12.5 Tire Size 2: 33 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

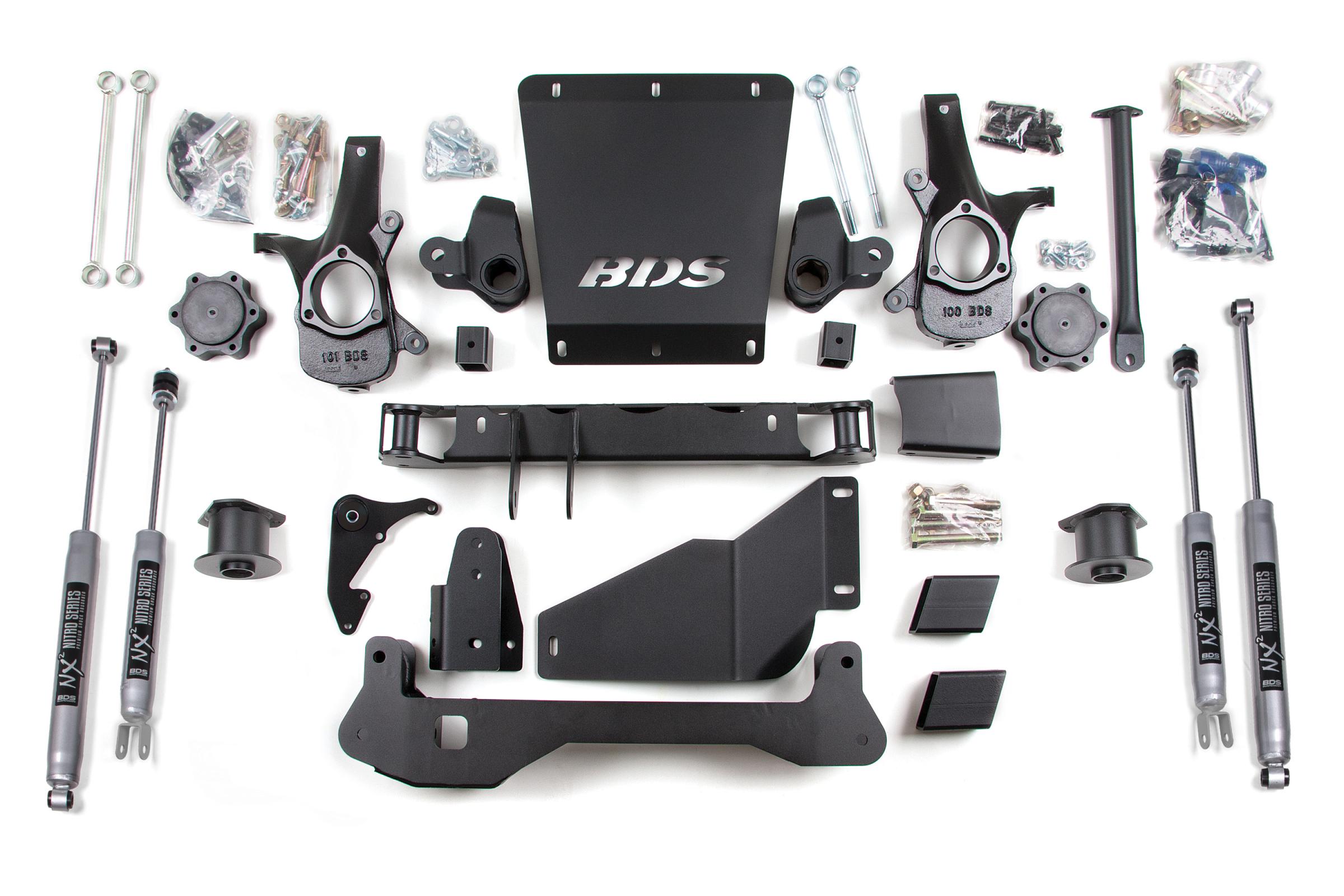

Kit Components:
- Includes one BDS021359, 2000-2006 GM 1500/SUV 3.5 inch Rear, UPC Code 658848614578
- Includes one BDS021450, 4.5in Torsion Bar System, UPC Code 658848614660
- Includes one BDS021610, 99-03 GM 1500/Silverado Box Kit (1of2), UPC Code 658848614820
- Includes one BDS021626, 99-06 K1500 Main Box Kit, UPC Code 658848614851
- Includes one BDS121614, Front Skid Plate, UPC Code 658848619115
- Includes two FOX98224602, Fox 2.0 Shock 21.73 x 14.63 x 2-S50/Clev
- Includes two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
