Improve the style and handling of your 1984-2001 Jeep Cherokee XJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the Cherokee XJ, this kit includes everything necessary to set your truck up right with clearance for up to 31 inch Tires.
Up front the lift kit includes Glide-Ride coil springs, extended sway bar links, and a transfer case drop to maintain proper driveline angles.
In the rear the kit utilizes a long thin add-a-leaf to add height without creating a harsh ride and a 5/8 inch lift block to level out the Jeep. These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
- Front Lift Method: Coil Spring
- Rear Lift Method: Add-A-Leaf
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 2.5 inch
- Verify the make/model of rear axle prior to ordering.
- Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.
- Transfer case lowering kit is not required for 2WD models.
- ProRide coil springs offer improved ride quality and more articulation
- Transfer case drop maintains proper driveline angles
- Easy, 100 percent Bolt-on installation
- NX2 gas shocks for improved damping
- Allows clearance for 31 inchTires
Rear Axle Option Chrysler 8.25
The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts.
Chrysler axles require 3 inch wide u-bolts and Dana 35 axles require 2-3/4 inch wide u-bolts. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.
Rear Lift Option Block Kit with Add-A-Leaf
- Add-a-leaf helps freshen up old worn-out factory leaf springs.
- Blocks are made from cast iron for max strength.
- Includes new center pins.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

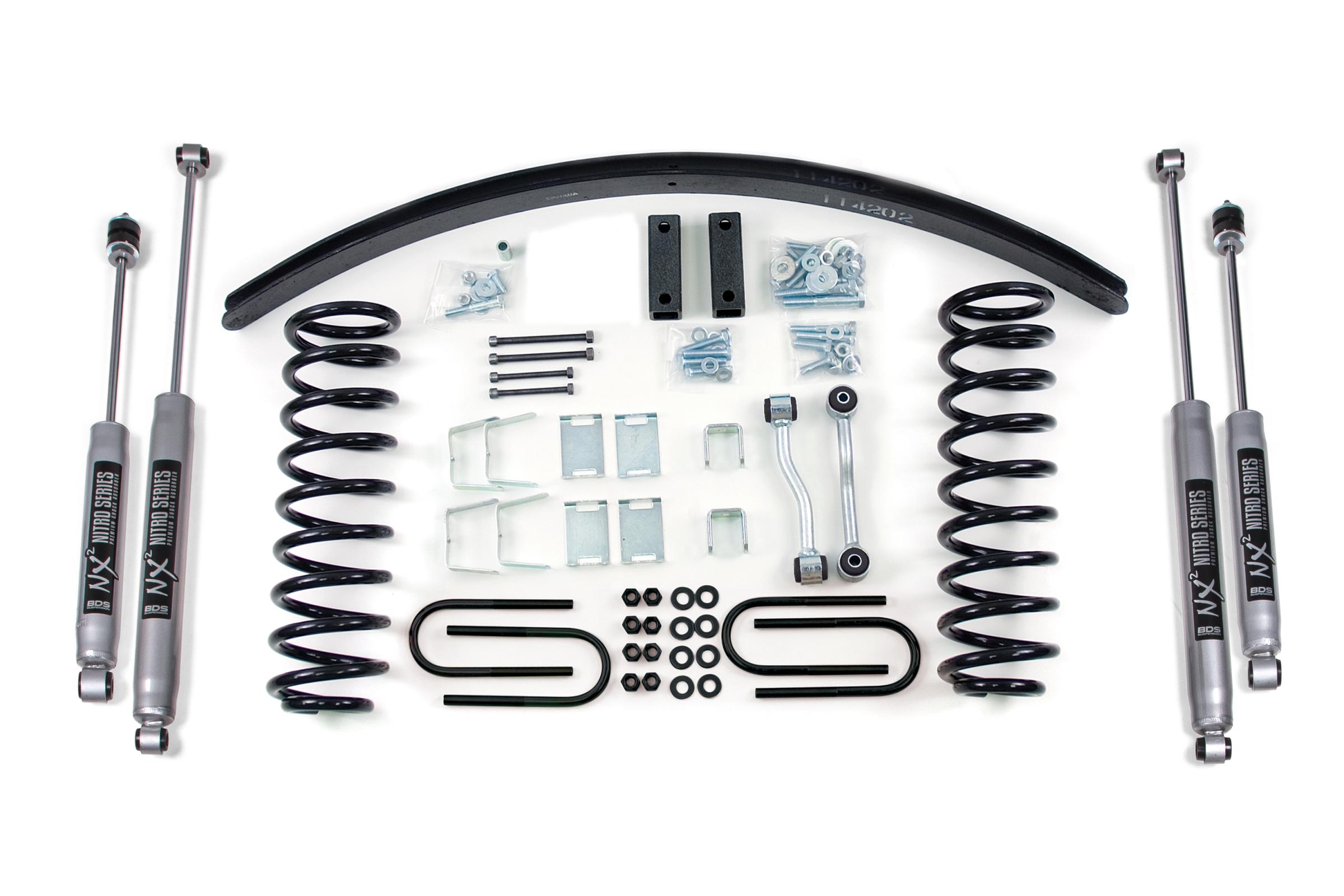

Kit Components:
- Includes one BDS014316, Jeep XJ 3in Kit w/Chrysler, UPC Code 658848614042
- Includes one BDS034301, Jeep XJ(84-01)/MJ(86-91)/ZJ(93-98) 3in, UPC Code 658848616749
- Includes one BDS124306, Jeep XJ/ZJ Sway Bar Links - Solid, UPC Code 711745604957
- Includes two FOX98224965, Fox 2.0 Shock 25.15 x 15.55 x 2- S50/BP7
- Includes two FOX98224980, Fox 2.0 Shock 23.65 x 15.05 x 2-BP18/EB1
