2 1/2 Inch Johnny Joint Rod End Externally Greased Currie Enterprises

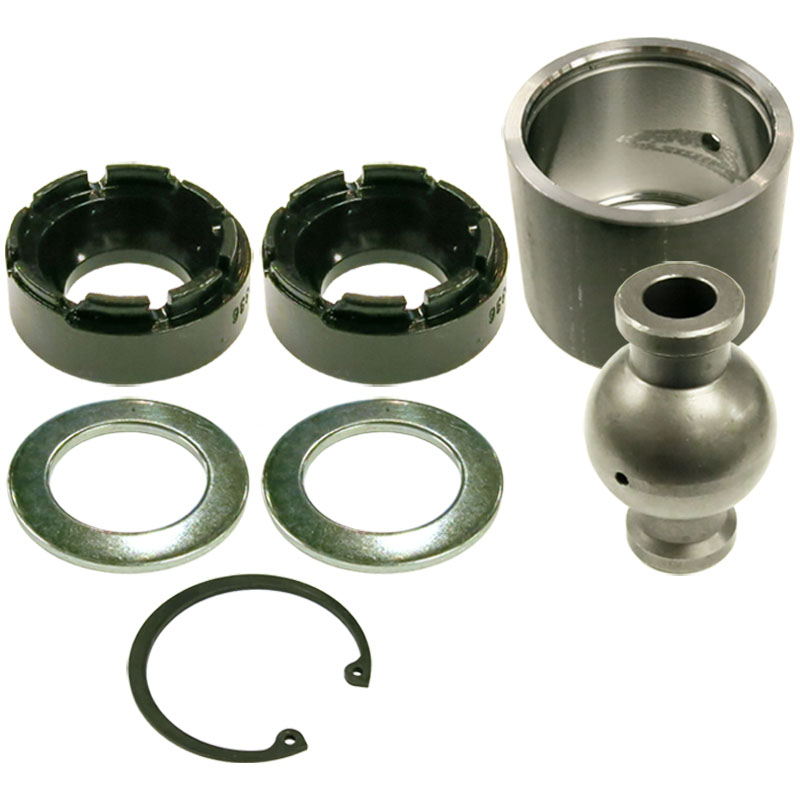

For fabricators and suspension system builders. Currie's Johnny Joints offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint. The bushings in the Johnny Joint rod ends are made with a high-density - tough 88 urethane that encases the inner ball. It is a very durable material, and is impervious to weather. The special center ball is heat-treated steel for extra strength, cross-drilled for Thru-bolt lubrication, features a 9/16 inch Thru bolt hole, and a 2 5/8 inch mounting width. The outer shell is .180 inch DOM tubing, and is fitted with zerk fitting for external greasing. Retaining washers are heat-treated steel.
Details:

• 2 1/2 Inch Johnny Joint Rod End - Externally Greased
• Has 2.625 Inch x .562 Heat Treated Steel And Cross-Drilled Ball
• High Density - Tough 88 Urethane Encases The Inner Bal
• 9/16 Inch Bolt Hole With 2 5/8 Inch Mounting Width
• Offers 30 Degrees Of Unrestricted Movement
• .180 Thick Heat-Treated Steel Housing w/Zerk Fitting
• Welding Required For Installation
• Sold As Each
