2019+ GM Silverado/Sierra 1500 Pre Runner Series Front Suspension Kit Baja Kits

The all new 2019 Silverado is the best offroad platform yet! Our Baja Kits Prerunner Suspension Kit significantly improves offroad performance in the dirt while retaining excellent on-road handling and comfort with optional sway bar mount.

The kit is a direct bolt-on to your 4WD Chevy Silverado and uses a readily available bolt in shock thats on the shlef at all dealers and install shops wordl wide.

Engineered to be a complete bolt on long travel travel suspension system, it uses Trophy Truck grade uniballs and hardware on both the Upper and Lower arms.

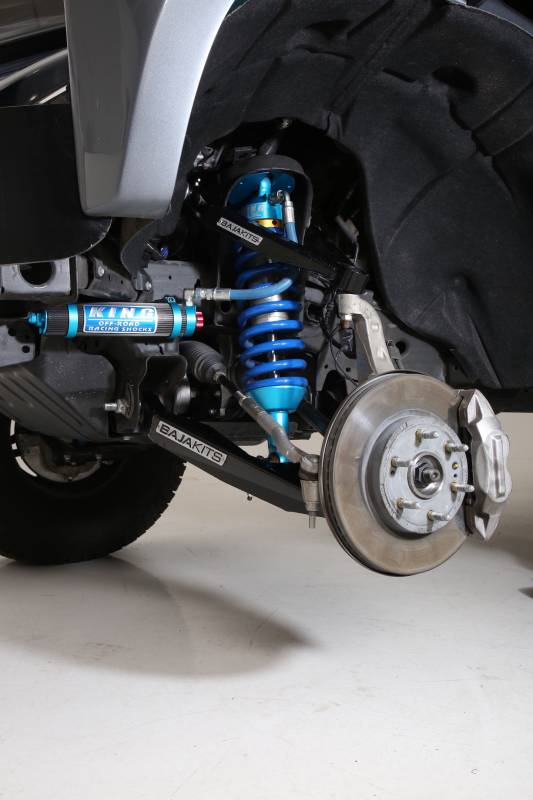

Heavy duty fabricated steel arms handle the abuse while King coilover shocks with remote reservoirs and compression adjusters for precise tuning handle suspension damping. bypass shock option also coming soon. (Rear kits available too).

The Baja Kits Advantage:

• CAD designed boxed UCA
• Our custom Hi-Density Custom Bushings with grease fittings offer industry leading durabilty and a quiet, no squeak ride
• 1 inch Hi angle Trophy Truck grade uniball's replace the weak stock ball joints that fail under high angles and loads seen from normal offroad use
• Our CNC machined corrosion resistant misaligns have a tapered snout to adapt your stock upright/spindle with ease
• We've increased the caster angle that you lose when lifting a truck with stock arms to regain on road stability, handling and alignment
• Easy Install, NO welding, able to be put back to stock.

Technical Specs:

• Track Width Over 3 inch wider per side (6 inch wider total)
• Lift 3 4 inch

Product Requirements:

• Shocks After market bolt in 2.5 or 3.0 shocks (King or Fox)
• Tire Size 35 inch or 37 inch
• Wheel Size 17 inch rim with 4.75 inch max backspacing
• Fenders Fiberglass fenders needed for 37 inch tires seeing offroad use

Stage 1:

• Aftermarket Shock
• Stock Fenders w/minor trimming
• 35 inch Tires
• Stage 2:
• Aftermarket Shock
• Fiberglass fenders
• 37 inch tires
• Stage 3:
• Aftermarket Shock & 3.0 bypass
• Fiberglass fenders
• 37 inch tires
• Attention you may run 37 inch tires with stock fenders for mild use ONLY. 37 inch tires will clear under normal driving conditions and WILL contact your stock fender at full compression (AKA jumping the truck, hitting bumps or driveways at speed ) The owner accepts the risk of damaging the stock fenders in this scenario.

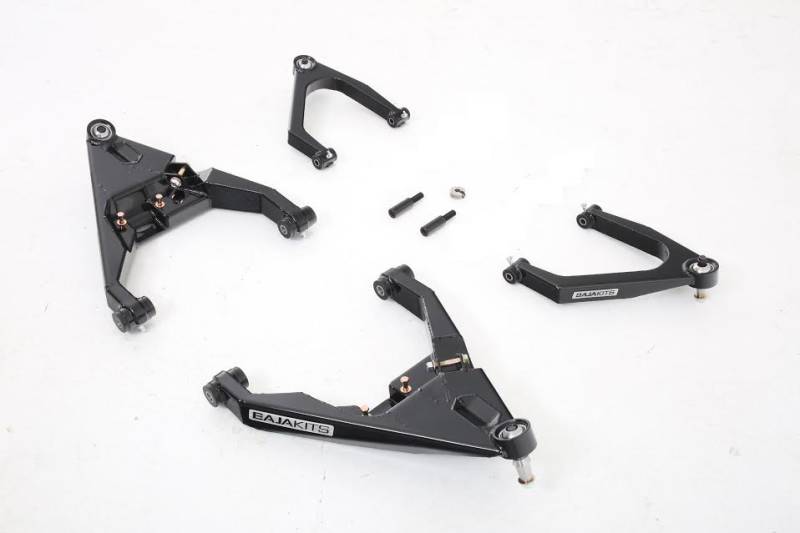

Parts Included:

• Kits come pre assembled and ready for install

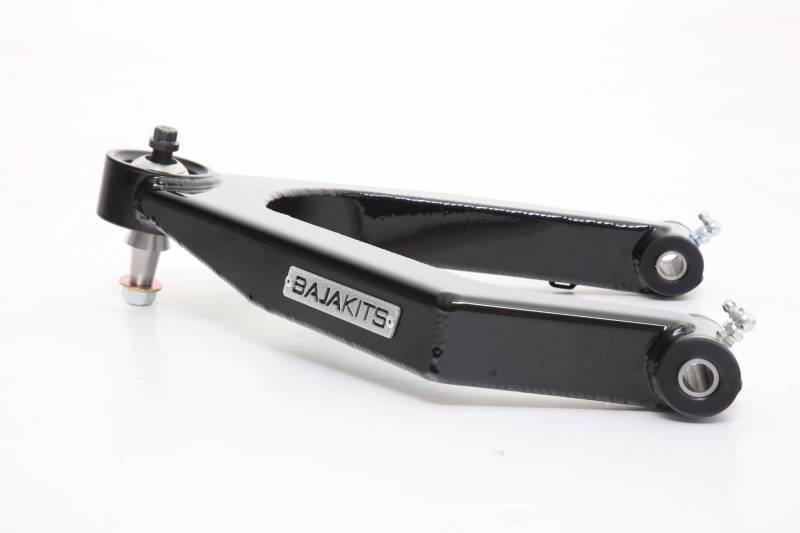

Boxed Upper Arms:

• Baja Kits Badges & Rivets
• Hi-Density Custom Bushings
• Crush Sleeves
• Zerk fittings
• 1 inch uniballs
• Countersunk Heat Treated Top Cap Misaligns & 12 point bolts
• Heat Treated Tapered Misalign Adapters

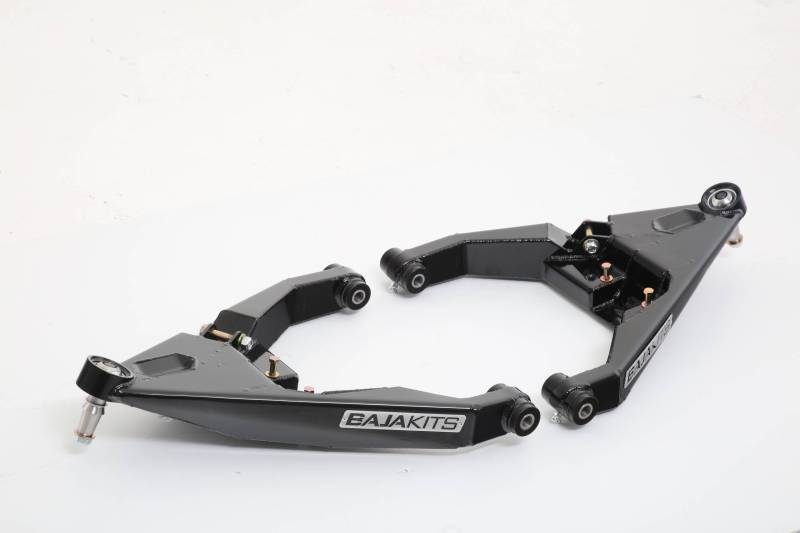

Boxed Lower Arms:

• Baja Kits Badges & Rivets
• Hi-Density Custom Bushings
• Crush Sleeves
• Zerk fittings
• 1 inch Uniballs
• Countersunk Heat Treated Top Cap Misaligns & 12 point bolts
• Heat Treated Tapered Misalign Adapters

Additional Items:

• CNC Steel Steering Extensions
• Install Guide
• Baja Kits Sticker pack

Install Information:

• Level 2 Install, Bolt on with drilling &/or minimal grinding
• Install Time: 8 hours (Times will vary depending on knowledge and skill level)
• A little over 3 inch wider per side; Secondary Bypass Shock option; 0-3 inch of adjustable lift
• Shocks Sold Separately

Compatible with the New 2022+ ZR2
