2005-15 Toyota Tacoma Pre Runner Series Front Suspension Kit Baja Kits

Baja Kits Plus 2 suspension is just that a bolt on 4 inch total wider track width making for more wheel travel, increase on and offroad stability, ground clearance, larger tires and shocks.

This kit is made to fit perfectly on your Toyota by replacing the stock rubber bushings and ball joints with Trophy Truck quality zero deflection Delrin Bushings and Uniballs, the strength and handling qualities are substantially increased.

We also increase the caster angle to get rid of the loose front end feeling that often occurs with mid to long travel suspension kits. This kit is designed to be paired with 2.5 coil overs and optional

2.5 bypasses which can be installed upon initial install or later down the road (Bypass mounts will require welding)

The Baja Kits Advantage:

• CAD designed boxed UCA

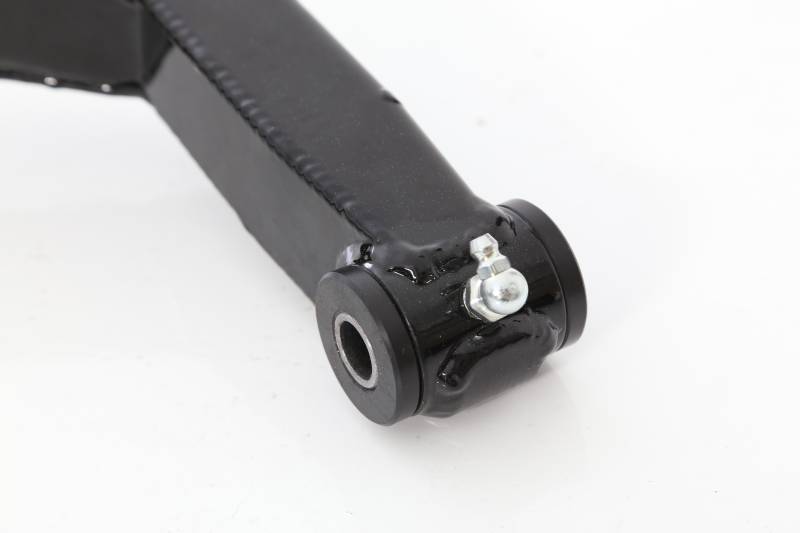

• Trophy Truck grade Delrin bushings with grease fittings for industry leading durabilty and a quiet, no squeak ride

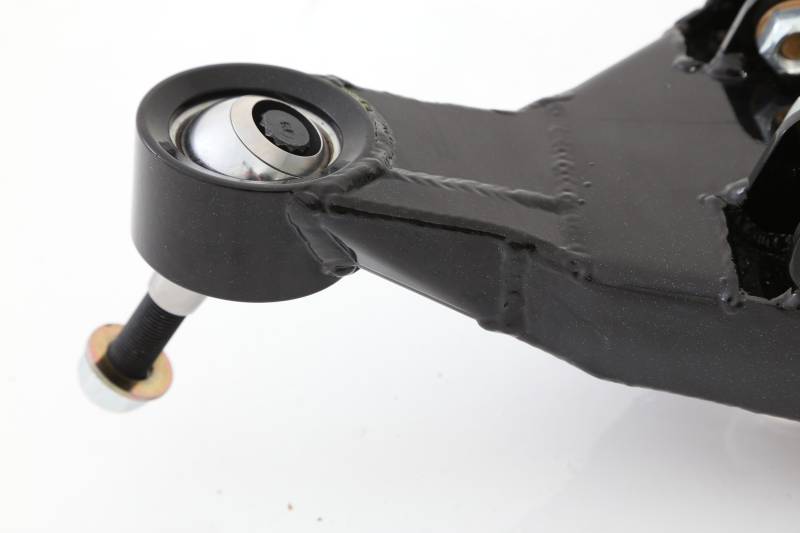

• 1 inch Hi angle Trophy Truck grade uniball's replace the weak stock ball joints that fail under hi angles and loads seen from normal offroad use
• Our CNC machined corrosion resistant misaligns have a tapered snout to adapt your stock upright/spindle with ease
• We've increased the caster angle that you lose when lifting a truck with stock arms to regain on road stability, handling and alignment

Technical Specs:

• Track Width 2 inch Wider each side
• Wheel Travel 11 inch+
• Lift 3 inch-4 inch

Product Requirements:

• Shocks Aftermarket Replacements Shocks, Custom King Shock, Bypass Shocks
• Tire Size 33 inch are recommended for most, 35 inch Are possible but an aggresive option
• Wheels Size 16 inch or 17 inch with Max Backspace of 4.75 inch
• Fenders Fiberglass Fenders or Trimming of stock fenders is needed (35 inch will require fiberglass & significant body mount mod and trimming)

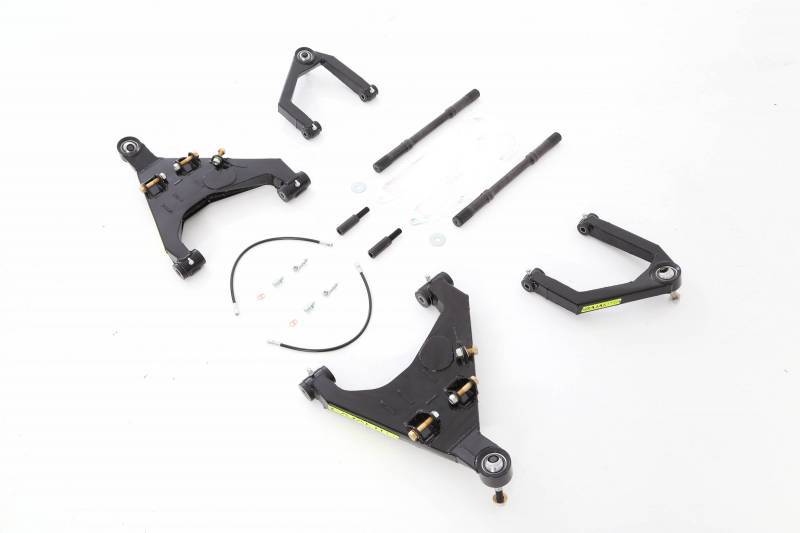

Parts Included:

• Kits come pre assembled and ready for install
• Boxed Upper Arms
• Baja Kits Badges & Rivets
• Hi Density Bushings
• Crush Sleeves
• Zerk fittings
• 1 inch uniballs
• Countersunk Top Misaligns & 12 point bolts
• Tapered Misalign Adapters
• Boxed Lower Arms
• Baja Kits Badges & Rivets
• Delrin Bushings
• Crush Sleeves
• Zerk fittings
• 1 inch Uniballs
• Countersunk Top Misaligns & 12 point bolts
• Tapered Misalign Adapters
• Shock Bolts and Nuts
• Additional Items
• Brakelines, Fittings,Adapters and Copper Washers
• Zinc plated CNC Steering Extensions
• Extended Heat Treated Axles (4WD trucks only)
• Install Guide
• Baja Kits Sticker pack

Install Information:

• Level 2 Install, Bolt on (Minimal Welding Required if Adding Limit Straps)
• Install Time: 8 hours (Times will vary depending on knowledge and skill level)

Technical Specs:

• Track Width 2 inch Wider each side
• Wheel Travel 11 inch+
• Lift 3 inch-4 inch
