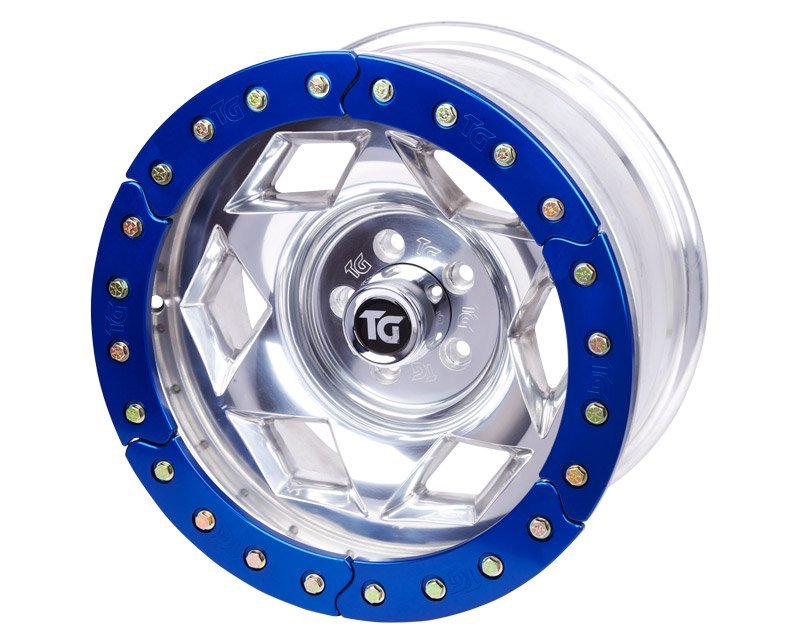

17x9 Inch Aluminum Beadlock Wheel Segmented Ring Trail Gear

17.0 Inch Aluminum Beadlock Wheel 5 On 4.50 Inch W 3.75 Inch Polished Segmented Ring Trail-Gear is expanding our Creeper Lock Wheel line to include wheels for TJs, Ford Rangers, and many other applications! Creeper Locks are 17.0 Inch X 9.0 Inch wheels with a backspacing of 3.75 Inch standard with 4.25 Inch and 5.0 Inch backspacing available upon request. Each wheel is made from a solid piece of aluminum and weighs a whopping 45.0 lbs with locking ring and hardware.

These are no ordinary aluminum wheels. Creeper Locks are super tough and built to last. Each wheel is cast with the inner beadlock as part of the wheel. All 24 of the bolt holes on the wheel have steel Time-Serts installed to prevent the bolts from galling. Our Creeper Locks Sectional Beadlock Rings have been tested extensively at some of the world's hardest courses, such as The Hammers in Johnson Valley, California, and the Rubicon trail in Lake Tahoe, California, as well as the Ultra4 racing circuit. Drop down inner lip centers tire onto wheel during mounting.

Each Creeper Locks Beadlock Wheel will include a TG Hub Cover at no additional cost! Our Creeper Lock Wheels will now come with our new Creeper Locks Sectional Beadlock Rings. Our new Creeper Locks Sectional Beadlock rings offer a variety of advantages over a traditional single beadlock ring.
Features:

• Solid Heavy Duty Design
• Time-Sert Inserts Installed
• Hub Cover with TG Logo

Beadlock Ring Features:

• Interlocking design
• Aggressive knurling for a better bite into the rubber of the tire
• Increased material thickness
• Deeper recesses for the bolt head
• Single segments can be replaced if damaged
• Multiple color options
• Compatible with all existing TG 17.0 Inch beadlock wheels

Specs:

• Sold As: Kit
• Brand: Trail-Gear with Time-Serts
• Color: Silver
• Material: Aircraft grade 6061 T6 billet aluminum
• Finish: Polished
• Location: Passenger and Driver Sides
• Size: 17.0 Inch by 9.0 Inch
• Bolt Pattern 5.0 On 4.5 Inch
• Backspacing: 3.75 Inch
• Center bore: 3.25 Wheel Rating: 2200 lbs each
• Drive: 2 Wheel Drive
• Fits: Jeep Wrangler TJ 1996-2006, Jeep Wrangler Unlimited 2003-2006, Jeep Wrangler YJ 1987-1995, Jeep Cherokee XJ 1984-2001, Jeep Grand Cherokee ZJ 1993-1998, Ford Ranger 1984-2012, Ford Bronco II 1984-1990, Ford Explorer 1991-2010, Toyota Pickup 1980-1995, Toyota Tacoma 1995-1997
• Warranty: 12 Month Limited Warranty
